序號	攪拌器 型式	與Y軸夾角 θ°	常用 尺寸	常用運轉條件及粘度范圍	流動狀態	適用 范圍	備注
17、18、19	PK、PCK、PWK	0	DJ/D=0.2～0.5 b/DJ=0.2、0.125 Z=6	μ＜50000cp ρ＜2000kg/m3 v=4～10m/s n=10～300rpm	流型為徑向流,有擋板可自槳葉為界形成上下兩個循環流,具有高剪切為和較大的循環能力,其剪切力比斜葉和后彎葉的剪切力都大.所以更適合于分散操作過程.	適用范圍廣適用于混合、分散、溶解、懸浮、傳熱、液相反應等。	b/DJ=0.2
20、21、22	PZK、PZCK、PZWK						b/DJ=0.125窄形比寬形所用功率小
23、25	WK、WWK	0		μ＜10000cp ρ＜2000kg/m3 v=4～10m/s n=10～300rpm 斜葉開肩渦輪式v=2～6m/s	徑向流,有擋板時可自槳葉為界形成上下兩個循環流,剪切力比斜葉和折葉開啟渦輪小,但排出性能好、槳葉不易磨損更適合固體懸浮,對固體溶解也很適合.		b/DJ=0.2
24、26	WZK、WZWK						b/DJ=0.125窄形比寬形所用功率小
27、28、29	XK、XCK、XWK	45			徑向流還有軸向分流,近于軸流型.剪切力在直葉和后彎葉開啟渦輪攪拌器中間.		b/DJ=0.2
30、31、32	XZK、XZCK、XZWK						b/DJ=0.125窄形比寬形所用功率小
33、34、35、36	MK、MCK、MWK、MCWK	45	DJ/D=0.2～0.5 Z=4		流型同XK型攪拌器,相同條件下消耗功率及攪拌能力都次于六葉攪拌器.在相對粘度高,運轉速度大的條件下比六葉更優.		b/DJ=0.2
37、38、39、40、41	NK、NCK、NWK、NCWK、TCK						b/DJ=0.15窄形比寬形所用功率小
42、43、44、45	YK、YCK、NWK、YCWK	45	DJ/D=0.2～0.5 Z=3		較之六葉、四葉開啟渦輪式攪拌器有相同規律,而且相對直徑大,轉速低的情況可視作槳式攪拌器處理.(如槳葉傾角為24°的,其攪拌效果類似三葉推進式)		b/DJ=0.2
46、47、48、49	ZK、ZCK、ZWK、ZCWK	45					b/DJ=0.125窄形比寬形所用功率小

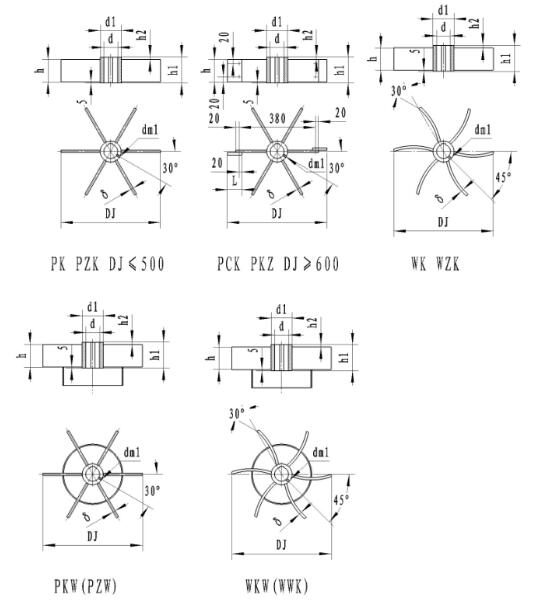

六葉開啟渦輪式攪拌器
17、六直葉整體開啟渦輪式PK       18、六直葉可拆開啟渦輪式PCK
19、直葉穩定環開啟渦輪式PWK     20、六窄葉整體開啟渦輪式PZK
21、六窄葉可拆開啟渦輪式PZCK    22、六窄葉穩定環開啟渦輪式PZWK
23、六彎葉開啟渦輪式WK          24、六彎窄葉開啟渦輪WZK
25、六彎葉穩定環開啟渦輪式WWK   26、六彎窄葉穩定環開啟渦輪式WZWK 六葉開啟渦輪式攪拌器主要尺寸

DJ	d	d1	h2	L	dm1/dm2	寬形			窄形			δ	寬形重量	窄形重量
						h	h1	N/n≤	h	h1	N/n≤		碳鋼/不銹鋼
150	30	55	8	/	M6/-	30	55	0.008	20	45	0.0035	6/4	1.13/1.0	0.87/0.78
	35	60											1.2/1.07	0.92/0.83
200	30	55	8	/	M6/-	40	55	0.008	25	50	0.0045	6/4	1.7/1.4	1.18/1.01
	40	60											1.74/1.5	1.23/1.07
250	35	55	10	/	M8/-	50	80	0.011	30	60	0.008	8/5	3.24/2.64	2.17/1.91
	40	70											3.33/2.73	2.26/2.0
300	40	70	10	/	M8/-	60	90	0.018	40	70	0.015	8/6	4.43/3.8	3.18/2.76
	45	75											4.54/3.94	3.25/2.83
	50	80											4.64/4.04	2.26/2.94
400	45	80	12	/	M10/-	80	110	0.031	50	80	0.025	10/8	9.0/7.8	5.94/5.19
	50	85											9.17/7.97	6.08/5.3
	55	90											9.29/8.25	6.10/5.47
500	60	95	12	/	M10/-	100	130	0.089	65	95	0.06	12/10	15.84/13.92	10.5/9.3
	65	100											15.94/14.14	10.65/9.45
	70	105											16.1/14.24	10.73/9.6
600	65	105	12	130	M10/12	120	150	0.11	75	105	0.08	12/10	24.31/21.33	15.78/13.94
	70	110											24.5/21.58	15.92/14.08
	80	120											24.9/22	16.22/14.42
700	70	115	14	180	M12/12	140	175	0.15	90	125	0.1	12/10	33.5/29.5	22.07/19.47
	80	125											34.1/30.1	22.3/19.74
	90	135190											34.7/30.8	22.75/20.19
800	75	120	15	200	M12/12	160	190	0.23	100	140	0.14	14/12	44.59/41.63	28.99/27.2
	85	140											48.81/46.06	32.10/30.47
	95	160											52.60/50.03	34.89/33.40
900	80	130	15	250	M12/12	180	200	0.26	115	150	0.16	14/12	56.99/53.20	37.25/34.93
	90	150											61.80/58.24	40.86/38.77
	100	160											63.28/59.80	41.97/39.93
1000	90	150	15	300	M16/12	200	225	0.29	125	160	0.18	14/12	73.96/70.30	48.41/45.76
	100	160											76.36/72.04	49.6/47.00
	110	180											82.88/76.89	54.23/51.87
1120	100	160	15	360	M16/12	225	250	0.43	140	180	0.27	16/14	103.2/98.0	66.39/63.24
	110	180											109.8/105.0	71.6167.59
	120	190											111.9/107.2	73.16/70.35
1250	110	180	15	430	M16/16	250	275	0.48	160	190	0.30	16/14	133.3/127.1	85.58/81.58
	120	190											135.67/129.6	87.22/83.57
	130	200											138.1132.1	88.86/85.29
1400	120	190	18	500	M16/16	280	300	0.53	175	200	0.33	16/14	165.7/157.6	105.2/100.3
	130	200											168.3/160.3	107.0/102.1
	140	210											170.8/163.0	108.7/103.9
1600	130	200	18	600	M16/16	320	340	0.72	200	250	0.45	18/16	235.6/225.6	152.6/146.6
	140	210											238.6/228.7	154.8/148.9
	150	220											241.5/231.7	156.9/151.1
1800	140	210	18	720	M18/16	360	380	0.81	225	265	0.51	18/16	297.1/284.0	189.8/181.8
	150	220											300.3/287.4	192.1/184.2
	160	240											314.6/302.4	202/194.7
2000	150	220	18	820	M18/18	400	430	0.90	250	290	0.56	18/16	368.5/349.4	232.9/222.8
	160	240											384.7/366.4	243.8/234.3
	170	250											389.0/370.9	246.6/237.3
2240	160	240	18	940	M18/18	450	480	1.4	280	310	0.87	20/18	514.6/496.2	323.6/312.2
	170	250											519.3/502	324.7/315.4
	180	260											524.1/506.1	329.7/318.6
2500	170	250	18	1070	M20/18	500	530	1.6	315	325	1.0	20/18	637.3/613.8	397/382.3
	180	260											642.5/619.3	400.2/385.6
	190	270											647.8/624.7	403.4/389

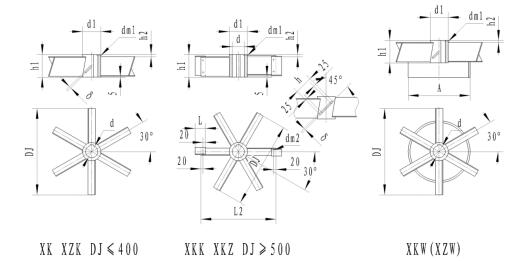

六斜葉開啟渦輪式攪拌器
27、六斜葉整體開啟渦輪式XK       28、六斜葉可拆開啟渦輪式XCK
29、六斜葉穩定環開啟渦輪式XWK  30、六斜窄葉整體開啟渦輪式XZK
31、六斜窄葉可拆開啟渦輪式XZCK   32、六斜窄葉穩定環開啟渦輪式XZWK
斜葉開啟渦輪式攪拌器主要尺寸

DJ	d	d1	h2	A	L	L2	dm1/dm2	寬形			窄形			δ	寬形重量	窄形重量
								h	h1	N/n≤	h	h1	N/n≤		碳鋼/不銹鋼
150	30	55	12	100	-	-	M12/-	30	50	0.008	20	50	0.0035	6/5	1.1/1.05	0.924/0.914
	35	60													1.1/1.05	1.0/0.994
200	30	55	12	140	-	-	M12/-	40	60	0.008	25	55	0.0045	6/5	1.55/1.42	1.223/1.186
	40	60													1.57/1.44	1.19/1.142
250	35	60	12	170	-	-	M12/-	50	70	0.011	30	55	0.008	6/5	2.67/2.44	1.438/1.338
	40	70													2.68/2.47	1.946/1.868
300	40	70	12	200	-	-	M12/-	60	76	0.018	40	70	0.015	8/5	4.23/3.22	3.12/2.562
	45	75													4.26/3.29	3.25/2.698
	50	80													4.33/3.37	3.379/2.834
400	45	80	12	270	-	-	M12/-	80	90	0.031	50	80	0.025	8/6	7.3/6.1	5.125/4.506
	50	85													7.37/6.18	5.297/4.686
	55	90													7.54/6.37	5.469/4.867
500	60	95	16	340	100	380	M16/12	100	106	0.089	65	95	0.06	10/8	13.96/11.92	9.30/8.267
	65	100													14.1/12.06	9.505/8.481
	70	105													14.17/12.17	9.710/8.696
600	65	105	16	400	130	420	M16/12	120	120	0.11	75	100	0.08	12/10	23.35/20.34	14.578/13.111
	70	110													23.42/20.44	14.825/13.371
	80	120													23.66/20.74	15.318/13.888
700	70	115	16	470	180	420	M16/12	140	140	0.15	90	110	0.1	12/10	31.75/27.7	20.271/18.193
	80	125													32.33/28.3	20.881/18.834
	90	135													32.36/28.47	21.492/19.475
800	75	120	18	540	200	480	M16/12	160	160	0.23	100	120	0.18	14/12	42.97/39.93	27.91/26.08
	85	140													46.53/43.66	30.58/28.87
	95	160													49.74/47.0	32.96/31.38
900	80	130	18	600	250	480	M16/12	180	180	0.26	115	130	0.21	14/12	55.69/51.25	35.96/33.62
	90	150													60.02/55.58	39.08/36.9
	100	160													61.2/56.76	39.94/37.8
1000	90	150	18	670	300	480	M16/12	200	200	0.29	125	150	0.23	14/12	72.48/67.96	47.52/44.16
	100	160													73.79/69.34	48.5/45.86
	110	180													79.75/75.6	52.97/50.55
1120	100	160	20	750	360	480	M16/12	225	225	0.43	140	160	0.34	16/14	99.93/94.65	64.34/61.08
	110	180													106.6/101.7	69.11/66.09
	120	190													108.6/103.7	70.49/67.54
1250	110	180	20	840	430	480	M18/16	250	250	0.47	160	180	0.38	16/14	130.2/123.8	84.33/80.54
	120	190													132.3/126.1	85.88/82.17
	130	200													134.5/128.3	87.44/83.8
1400	120	190	20	940	500	480	M18/16	280	280	0.53	175	196	0.42	16/14	163/154.8	103.9/98.87
	130	200													165.5/157.3	105.5/100.5
	140	210													167.9/159.6	107.2/102.3
1600	130	200	25	1070	600	480	M18/16	320	320	0.77	200	200	0.62	18/16	232.8/222.6	145.5/137.7
	140	210													235.5/225.5	147.2/140.9
	150	220													238.3/228.4	148.9/142.7
1800	140	210	25	1200	720	480	M18/16	360	360	0.86	225	21	0.69	18/16	294/283.8	181.5/171.5
	150	220													297.1/287	183.3/175
	160	240													310.7/301.3	191.2/183.3
2000	150	220	25	1340	820	480	M20/18	400	400	0.96	250	240	0.77	18/16	363.8/344.4	224.9/214.4
	160	240													378.8/360.2	233.9/223.9
	170	250													382.7/364.3	236.3/226.4
2240	160	240	30	1500	940	480	M20/18	450	450	1.32	280	260	1.1	20/18	508.7/489.9	313.7/301.8
	170	250													513.1/494.6	316.3/304.5
	180	260													517.5/499.3	318.9/307.2
2500	170	250	30	1670	1070	480	M20/18	500	500	1.47	315	280	1.18	20/18	631.1/607.2	387.7/372.5
	180	260													636/612.4	390.5/375.4
	190	270													641/617.6	393.2/378.3

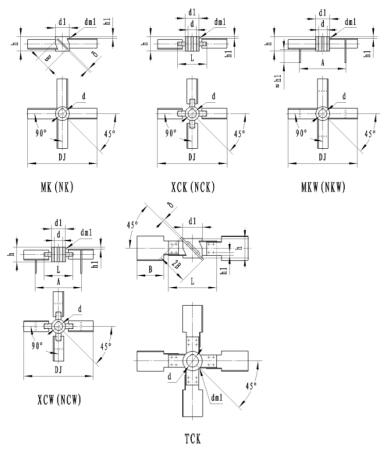

四葉開啟渦輪式攪拌器
33、四斜葉整體開啟渦輪式MK
34、四斜葉可拆開啟渦輪式MCK
35、四斜葉整體穩定器開啟渦輪式MWK
36、四斜葉可拆穩定器渦輪式MCWK
37、四斜窄葉整體開啟渦輪式ZK
38、四斜窄葉可拆開啟渦輪式NCK
39、四斜窄葉整體穩定器開啟渦輪式NWK
40、四斜窄葉可拆穩定器開啟渦輪式ZCWK
41、四葉T型開啟渦輪式TCK 四葉開啟渦輪式攪拌器主要尺寸

DJ	d	d1	h1	h2	A	dm1	L	δ	寬形		窄形
								不銹鋼/碳鋼	h	重量 不銹鋼/碳鋼	h	重量 不銹鋼/碳鋼
100	16	40	40	10				2/3	20	0.368/0.387	15	0.359/0.373
125	20	45	45	10				2/3	25	0.513/0.544	19	0.497/0.521
160	25	50	50	10				2/3	32	0.704/0.759	24	0.676/0.717
180	30	60	60	10				3/4	36	1.169/1.224	27	1.126/1.168
200	35	70	70	15	135	M8		3/4	40	1.818/1.958	30	1.806/1.866
220	35	70	70	15	148	M8		3/4	44	2.006/2.022	33	1.842/1.914
250	40	75	75	15	168	M8		4/6	50	2.44/2.692	38	2.296/2.484
280	40	75	75	20	188	M8		4/6	56	2.604/2.924	42	2.420/2.660
320	40	70	80	20	215	M10		6/8	64	3.666/4.066	48	3.294/3.594
	45	80
360	45	80	85	20	240	M10		6/8	72	4.416/4.936	54	3.932/4.324
	50	85
400	50	85	90	20	265	M12		8/10	80	6.044/6.66	60	5.24/5.7
	55	90
450	55	90	100	20	300	M12		8/10	90	8.054/8.838	68	7.03/7.618
	60	100
500	60	100	105	25	335	M12	380	8/10	100	13/13.68	75	11.71/12.14
	65	105
560	65	115	110	25	375	M12	400	10/12	112	17.84/18.66	84	15.76/16.26
	70	110
630	70	110	120	25	420	M12	420	10/12	126	20.94/22	95	18.1/19.04
	75	120
710	75	120	130	25	473	M12	420	10/12	142	25.19/26.71	107	21.91/22.91
	80	130
800	80	130	140	25	535	M12	480	12/14	160	34.46/36.22	120	29.34/30.5
	85	140
900	85	140	150	30	600	M12	480	12/14	180	43.20/45.47	135	36.6/28.15
	90	150
1000	90	150	160	30	670	M16	480	12/14	200	54.72/56.97	150	45.98/47.85
	100	160
1120	100	160	180	30	750	M16	480	14/16	224	72.95/76.85	168	60.92/63.05
	110	180
1250	110	180	190	30	835	M16	480	14/16	250	88.61/92.72	188	73.45/76.24
	120	190
1400	120	190	200	30	935	M16	480	14/16	280	115.42/120.52	210	96.17/99.58
	130	200
1600	130	200	210	30	1070	M16	480	16/18	320	158.48/165.02	240	129.32/133.82
	140	210
1800	140	210	220	35	1200	M18	480	16/18	360	195.22/203.82	270	157.92/163.92
	150	220
2000	150	220	240	35	1335	M18	480	16/18	400	235.88/247.78	300	190.28/198.08
	160	240
2240	160	240	250	35	1480	M18	480	18/20	448	323.17/336.17	336	257.07/266.17
	170	250
2500	170	250	260	35	1670	M20	480	18/20	500	390.71/413.01	375	322.61/333.91
	180	260

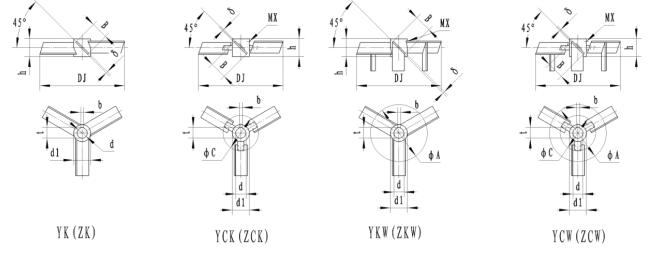

三葉開啟渦輪式攪拌器
42、三斜葉整體開啟渦輪式Y(jié)K            43、三斜葉可拆開啟渦輪式Y(jié)CK
44、三斜葉整體穩定器開啟渦輪式Y(jié)WK    45、三斜葉可拆穩定器渦輪式Y(jié)CWK
46、三斜窄葉整體開啟渦輪式ZK          47、三斜窄葉可拆開啟渦輪式ZCK
48、三斜窄葉整體穩定器開啟渦輪式ZWK  49、三斜窄葉可拆穩定器開啟渦輪式ZCWK 三斜葉開啟渦輪式攪拌器主要尺寸

DJ	d	d1	h1	dm1	b	t	ΦA	ΦC	δ 不銹鋼/碳鋼	重量不銹鋼/碳鋼
										寬葉	窄葉
200	25	50	50	M6	8	28.3	130	/	3/4	1.0/1.0	0.754/0.754
220	30	60	60	M6	8	33.3	150	/	3/4	1.5/1.47	1.209/1.204
250	35	70	70	M8	10	38.3	170	/	4/6	2.31/2.36	1.9431.98
280	35	70	70	M8	10	38.3	190	/	4/6	2.44/2.54	1.948/2.088
320	40	75	75	M8	12	43.3	210	/	6/8	3.47/3.59	2.652/2.748
360	40	75	75	M8	12	43.3	240	/	6/8	3.8/4.01	2.859/3.012
400	45	80	80	M10	14	48.8	270	/	8/10	5.09/5.36	3.79/3.97
450	50	85	85	M10	14	53.8	300	/	8/10	6.12/6.5	4.532/4.769
500	55	90	90	M12	16	59.4	330	250	8/10	10.62/11.05	9.17/9.32
560	60	100	100	M12	18	64.4	370	260	10/12	14.55/15.07	12.18/12.37
630	65	105	105	M12	18	69.4	420	285	10/12	17.06/17.78	14/14.39
710	70	110	110	M12	20	74.9	470	290	10/12	20.33/21.35	16.61/17.09
800	75	120	120	M12	20	79.9	530	320	12/14	27.75/28.93	21.96/23.48
900	80	130	130	M12	22	85.4	600	330	12/14	34.82/36.35	27.41/28.1
1000	85	140	140	M12	22	90.4	670	340	12/14	44.20/45.57	34.51/35.31
1120	90	150	150	M12	25	95.4	750	350	14/16	58.48/60.60	44.92/45.9
1250	100	160	160	M16	28	106.4	830	380	14/16	70.77/73.56	53.73/55.02
1400	110	180	180	M16	28	116.4	930	400	14/16	92.65/96.06	71.02/72.54
1600	120	190	190	M16	32	127.4	1070	410	16/18	125.8/130.3	93.08/95.07
1800	130	200	200	M16	32	137.4	1200	420	16/18	154.2/160.2	111.2/115.2
2000	140	210	210	M16	36	148.4	1340	430	16/18	185.8/194.9	134.3/138.3
2240	150	220	220	M18	36	158.4	1490	440	18/20	252.6/261.7	178.3/183
2500	160	240	240	M18	40	169.4	1660	460	18/20	302.8/320.3	224.4/230.2

注：寬葉葉片寬h=0.2DJ；窄葉葉片寬h=0.125DJ。
